Power Module -

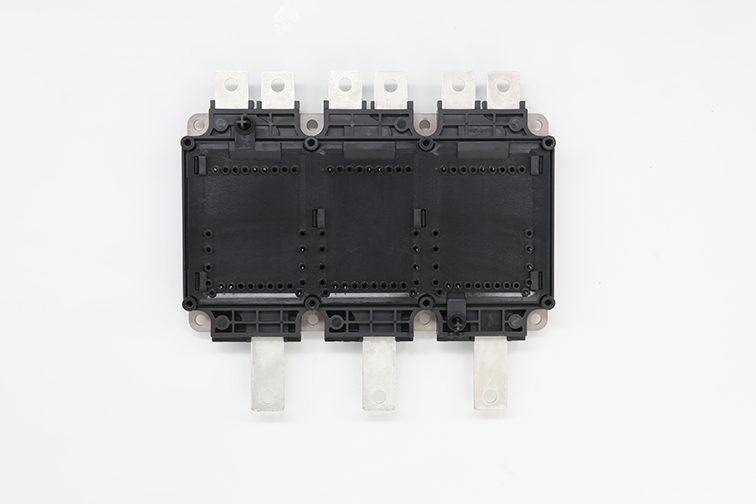

Drive AEP380B12TFLT power module has a 6 in 1 topology design integrated with IGBT power semiconductors, applicable for xEV/e-mobility traction motor inverters operating with 800V battery systems. With a maximum current output at 380A and drives the motor to deliver output at 150kW. Equipped with built-in high efficiency pin fin heat spreader to offer high reliability and power density. Drive module is the optimal solution for electrified vehicles.
| Model No. | Voltage | Current ID/IC | Configuration | Encaputaltion Type | VCE(sat) | VGE | VF | Eon (mJ) | Eoff (mJ) | Qg (uC) | tr (us) | Qrr (uC) | Certification | Rth (K/W) |
| AEP820B08TFLT | 750V | 820A | 6 in 1 | Drive | 1.4 | -20/+20 | 1.8 | 13.5 | 35.5 | 2.2 | 0.069 | 14 | AQG324 | 0.12 |
| AEP820B08TFST | 750V | 820A | 6 in 1 | Drive | 1.4 | -20/+20 | 1.8 | 13.5 | 35.5 | 2.2 | 0.069 | 14 | AQG324 | 0.12 |
| AEP550B08TFLT | 750V | 550A | 6 in 1 | Drive | 1.4 | -20/+20 | 1.8 | 9 | 19 | 1.5 | 0.057 | 10.8 | AQG324 | 0.145 |
| AEP550B08TFST | 750V | 550A | 6 in 1 | Drive | 1.4 | -20/+20 | 1.8 | 9 | 19 | 1.5 | 0.057 | 10.8 | AQG324 | 0.145 |
| AEP380B12TFLT | 1200V | 380A | 6 in 1 | Drive | 1.75 | -20/+20 | 1.85 | 18.5 | 16.5 | 1.6 | 0.05 | 16 | AQG324 | 0.135 |
| AEP380B12TFST | 1200V | 380A | 6 in 1 | Drive | 1.75 | -20/+20 | 1.85 | 18.5 | 16.5 | 1.6 | 0.05 | 16 | AQG324 | 0.135 |
| APP075B12TFPP | 1200V | 75A | 6 in 1 | Mini | 1.85 | -20/+20 | 1.8 | -- | -- | -- | -- | -- | AQG324 | -- |
Remarks: Value for reference only, test value and condition please refer to released datasheets.
