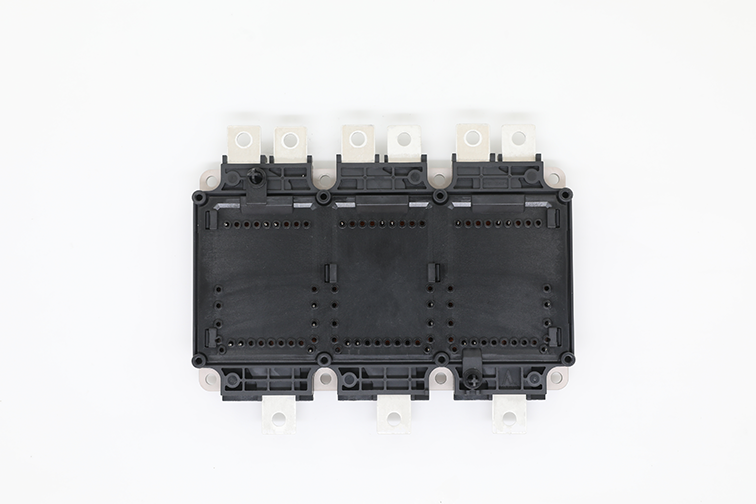

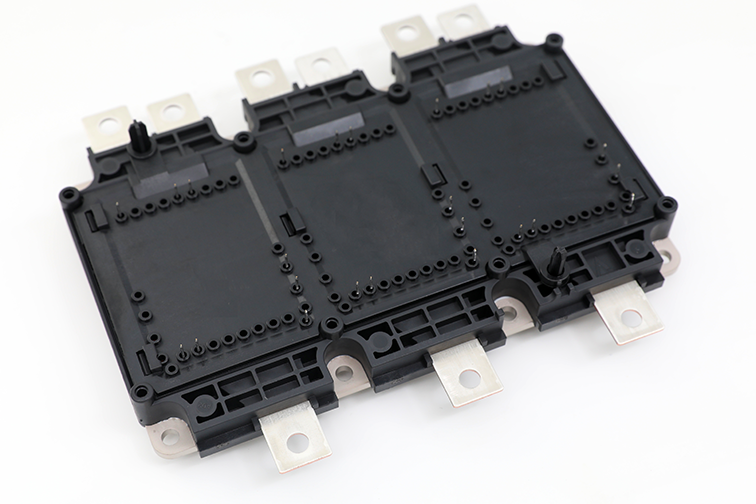

Si IGBT 750V/550A Drive Power Module (AEP550B08TFST)

Main Features
  • 6 in 1 Integrated design for 3 phase motors
  • Fully tested based on AQG324 & PPAP available
  • Voltage: 750V, Current: 550A
  • Output: 50~100KW
  • Built in NTC Temperature sensor
  • PressFit connection design
  • RoHS Qualified
  • Short tab with hole

Product info

Drive AEP550B08TFST power module has a 6 in 1 topology design integrated with IGBT power semiconductors, applicable for xEV/e-mobility traction motor inverters operating with 400V battery systems. With a maximum current output at 550A and drives the motor to deliver output at 100kW. Equipped with built-in high efficiency pin fin heat spreader to offer high reliability and power density. Drive module is the optimal solution for electrified vehicles.

Model No. Voltage Current ID/IC Configuration Encaputaltion Type VCE(sat) VGE VF Eon (mJ) Eoff (mJ) Qg (uC) tr (us) Qrr (uC) Certification Rth (K/W)
AEP820B08TFLT 750V 820A 6 in 1 Drive 1.4 -20/+20 1.8 13.5 35.5 2.2 0.069 14 AQG324 0.12
AEP820B08TFST 750V 820A 6 in 1 Drive 1.4 -20/+20 1.8 13.5 35.5 2.2 0.069 14 AQG324 0.12
AEP550B08TFLT 750V 550A 6 in 1 Drive 1.4 -20/+20 1.8 9 19 1.5 0.057 10.8 AQG324 0.145
AEP550B08TFST 750V 550A 6 in 1 Drive 1.4 -20/+20 1.8 9 19 1.5 0.057 10.8 AQG324 0.145
AEP380B12TFLT 1200V 380A 6 in 1 Drive 1.75 -20/+20 1.85 18.5 16.5 1.6 0.05 16 AQG324 0.135
AEP380B12TFST 1200V 380A 6 in 1 Drive 1.75 -20/+20 1.85 18.5 16.5 1.6 0.05 16 AQG324 0.135
APP075B12TFPP 1200V 75A 6 in 1 Mini 1.85 -20/+20 1.8 -- -- -- -- -- AQG324 --

Remarks: Value for reference only, test value and condition please refer to released datasheets.
